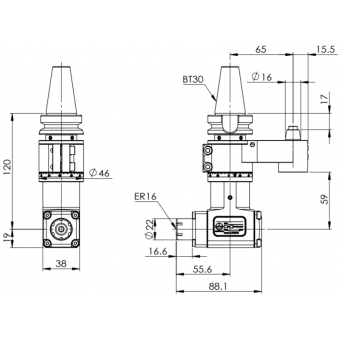

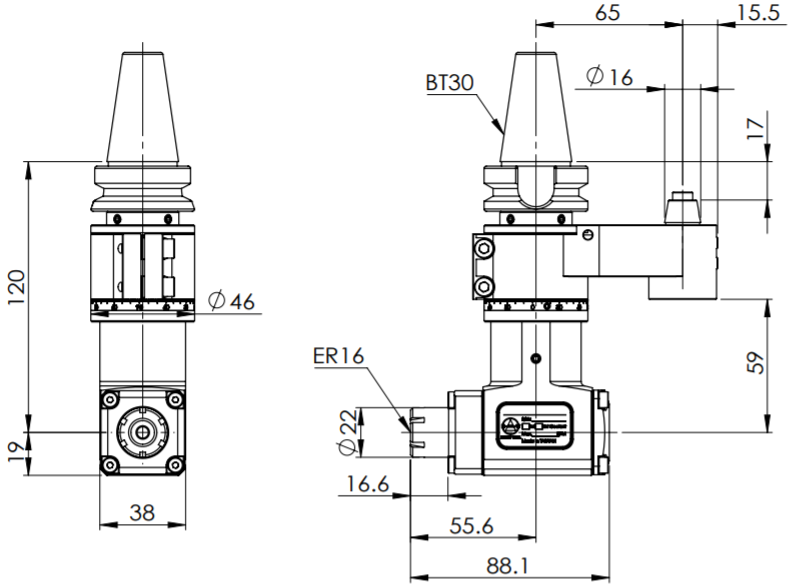

◎?BT30-ER16 Mini Angle Head (AHL Type)
◎?Run-out : 0.002 mm
◎?Material : Aerospace Alu. Alloy / Alloy Steel
◎?R.P.M. : Max. 8000 RPM
◎?Torque : Max. 8 Nm
◎?Drilling : Max. 10 mm
◎?Tapping : Max M6
◎?Gear Ratio : 1：1
◎?Standard Accessory : M Type Wrench,?Pin Wrench, ER Nut
◎?Output Rotation : Reverse to Input Rotation
◎??Compact and lighter body design is suitable for drilling, milling, and tapping application.
◎??Can be automatic tool changed. Increases productivity.
◎??Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
